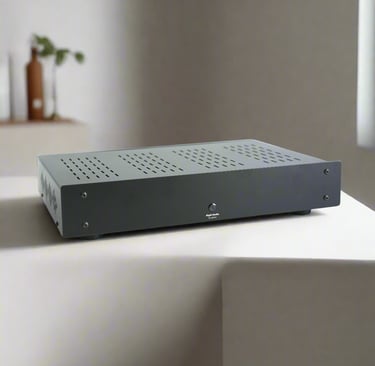

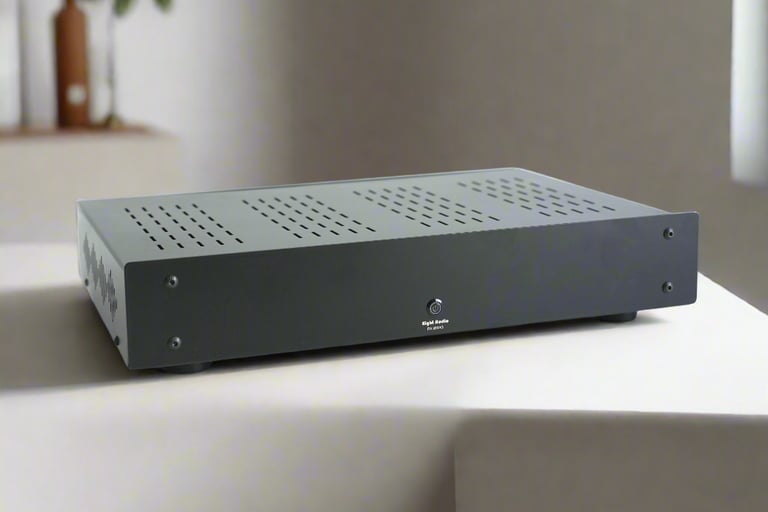

PA 200X3

Bring studio-quality sound into your living room with the PA 200X3 — a premium three-channel power amplifier from Eight Audio designed to power your front L–C–R speakers in 5.1, 7.1, or immersive Dolby Atmos / DTS:X setups. With cutting-edge ICEpower® Class D technology and a triple-mono design, this amp delivers clarity, punch, and headroom like never before.

Key Features

ICEpower® Class D Technology with HCOM (Hybrid Controlled Oscillation Modulation) topology: Delivers high efficiency, low distortion, and clean, dynamic sound.

Triple Mono Design: Separate power supplies for each channel to ensure channel independence and minimal cross-talk.

Low Distortion & High Dynamic Range: S/N ratio of 110 dB (A-weighted into 4 Ω) for clean, quiet backgrounds, with distortion controlled even at high output.

Design & Build

The PA 200X3 is housed in a Metal cabinet that provides both strength and thermal stability. The metal enclosure helps dissipate heat effectively, reducing internal thermal stress under heavy load.

Each channel is designed as a triple-mono amplifier with separate power supplies. This means that each of the three outputs has its own power regulation and filtration, minimizing channel interference and crosstalk.

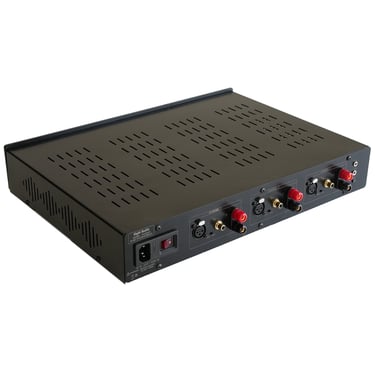

For input flexibility, each channel offers both balanced XLR and unbalanced RCA connectors, independently selectable. This means you can match to your sources cleanly, whether they are pro audio gear or standard home cinema / hi-fi components.

Details & Specifications

System Type

3-Channel Mono Amplifier

Amplification type

Class D with Hybrid feedback Controlled Oscillation Modulator (HCOM) - ICEpower®

Frequency response

Minimum impedance

Output Power (RMS) - Three channels driven

Trigger & Auto on / off

THD+N

Dynamic range

Input Connectors

35 - 22000 Hz +/- 3db

4Ω - 210W

8Ω - 117W

2.7Ω - 300W

2.7 Ω

1% @ 117W in 8Ω

10% @ 255W in 4Ω

1% @ 210W in 4Ω

Damping Factor

110 dB S/N, (A-weighted, 4 Ω)

Application

Height - 75mm
Width - 450mm
Depth - 320mm (340mm With Connectors)

Output Connectors

660, 4Ohm

Professional Home Cinema Amplifier

Balanced - XLR & Unbalanced - RCA

Copper base Gold plated 5way binding posts

12V DC Trigger Input / Loop Out

Mains Power

Product Dimensions

230V 50hz (IEC Connector)

Net weight

7 kgs
