Key Features

ICEpower® Class D Technology with HCOM (Hybrid Controlled Oscillation Modulation) topology: Delivers high efficiency, low distortion, and clean, dynamic sound.

Octagon Mono Design: Separate power supplies for each channel to ensure channel independence and minimal cross-talk.

Low Distortion & High Dynamic Range: S/N ratio of 110 dB (A-weighted into 4 Ω) for clean, quiet backgrounds, with distortion controlled even at high output.

Design & Build

Handles Tough Speakers: Low impedance handling (down to ~2.7Ω) gives flexibility — even with demanding speakers or those with dips in impedance.

Mono / Channel Design: A “pentagon-mono” layout — each of the 8 channels has its own power supply. Results: minimal crosstalk, better stability, more consistency under load.

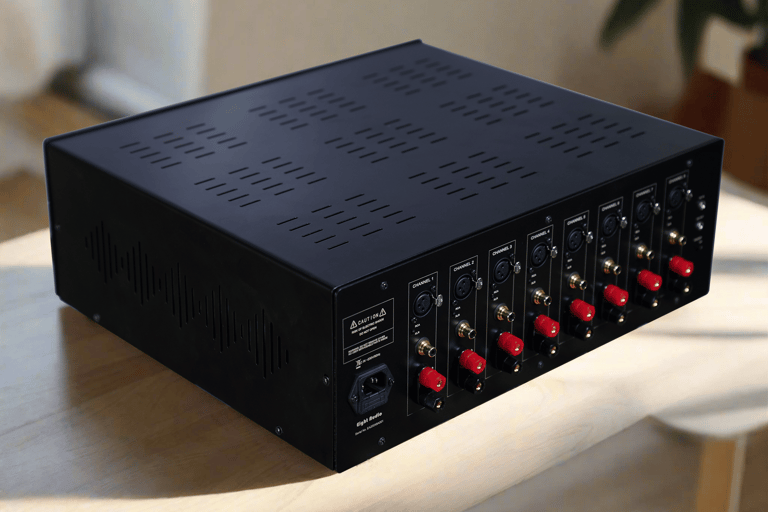

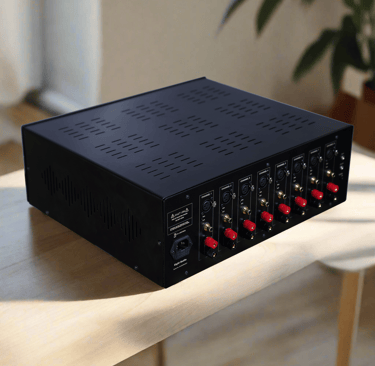

For input flexibility, each channel offers both balanced XLR and unbalanced RCA connectors, independently selectable. This means you can match to your sources cleanly, whether they are pro audio gear or standard home cinema / hi-fi components.

Details & Specifications

System Type

8-Channel Mono Amplifier

Amplification type

Class D with Hybrid feedback Controlled Oscillation Modulator (HCOM) - ICEpower®

Frequency response

Minimum impedance

Output Power (RMS) - All channels driven

Trigger & Auto on / off

THD+N

Dynamic range

Input Connectors

35 - 22000 Hz +/- 3db

4Ω - 210W

8Ω - 117W

2.7Ω - 300W

2.7 Ω

1% @ 117W in 8Ω

10% @ 255W in 4Ω

1% @ 210W in 4Ω

Damping Factor

110 dB S/N, (A-weighted, 4 Ω)

Application

Height - 170mm
Width - 450mm
Depth - 385mm (410mm With Connectors)

Output Connectors

660, 4Ohm

Professional Home Cinema Amplifier

Balanced - XLR & Unbalanced - RCA

Copper base Gold plated 5way binding posts

12V DC Trigger Input / Loop Out

Mains Power

Product Dimensions

230V 50hz (IEC Connector)

Net weight

10 kgs
